Fixed Cascade Water Fountain Heads For Outdoor / Indoor Lanscape

Name: Fixed Cascade Water Fountain Heads For Outdoor Indoor Lanscape
Brand: YICHENG
Price: 1 USD

Wholesale Fixed Cascade Water Fountain Heads For Outdoor / Indoor Lanscape from china suppliers

Brand Name : YICHENG

Model Number : CBtT series

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1, 000,000pcs/week

Delivery Time : 5-10 days

Packaging Details : carton

Material : brass, brass with chrompated, stainless steel

Color : Yellow & Silver

Qty of water outlet : 1pc

Size : DN15 - DN80

Thread : External and Internal can be chosen

Pressure : 40 - 450Kpa

Contact Now

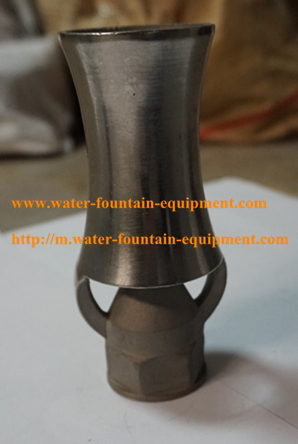

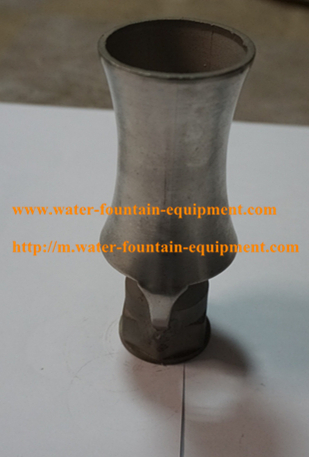

Fixed Cascade Water Fountain Heads For Outdoor / Indoor Lanscape

Description:

The Cascade Nozzle is the single most popular effect used in commercial and architectural
fountains through modern times.This nozzle is a kind of porous scattering nozzle. It is also called Ice
Tower nozzle or Cedar nozzle.

Fountain nozzle sprays can be used in a wide variety of ways to achieve spectacular effects.
With beautiful shape and convenient installation, it can be adapted to a wide range of ponds and fountains.

Specifications

Stainless Steel 304 Material:

Model	Performance				Water Inlet		Water Outlet		Size		Weight
Model	pressure (Kpa)	capacity (m3/h)	height (m)	coverage (m)	diameter (inch)	connection type	diameter (mm)	number (pcs)	height (mm)	max dia. (mm)	(kg)
CBtT50	80-400	35-45	1-10	0.8-1.0	2"	internal thr.	Ф73 * Ф19 * 1		200	94	1.1
CBtT40	50-300	20-35	1-8	0.5-0.6	1 1/2"		Ф63 * Ф19 * 1		185	95	0.9
CBtT25	40-200	8-12	1-5	0.2-0.3	1"		Ф46 * Ф12 * 1		135	61	0.4
CBtT20	40-100	3-5	1-3	0.2	3/4"	external thr.	Ф30 * Ф10 * 1		90	44	0.15
CBtT15	40-100	2-4	1-3	0.15	1/2"	external thr.	Ф25 * Ф8 * 1		71	33	0.1

Brass Material:

Model	Performance				Water Inlet		Water Outlet		Size		Weight
Model	pressure (Kpa)	capacity (m3/h)	height (m)	coverage (m)	diameter (inch)	connection type	diameter (mm)	number (pcs)	height (mm)	max dia. (mm)	(kg)
CBtT80	80-450	55-65	1-12	1-1.5	3"	external thr.	Ф91 * Ф24 * 1		283	123	1.66
CBtT65	80-450	55-65	1-12	1-1.5	2 1/2"	internal thr.	Ф91 * Ф24 * 1		283	123	1.66
CBtT50	80-400	35-45	1-10	0.8-1.0	2"		Ф73 * Ф19 * 1		200	94	1.1
CBtT40	50-300	20-35	1-8	0.5-0.6	1 1/2"		Ф66 * Ф16 * 1		180	86	0.75
CBtT25	40-200	8-12	1-5	0.2-0.3	1"		Ф46 * Ф12 * 1		123	60	0.35
CBtT20	40-100	3-5	1-3	0.2	3/4"	external thr.	Ф30 * Ф10 * 1		89	44	0.13
CBtT15	40-100	2-4	1-3	0.15	1/2"	internal thr.	Ф25 * Ф8 * 1		71	33	0.07
